Designed around your space

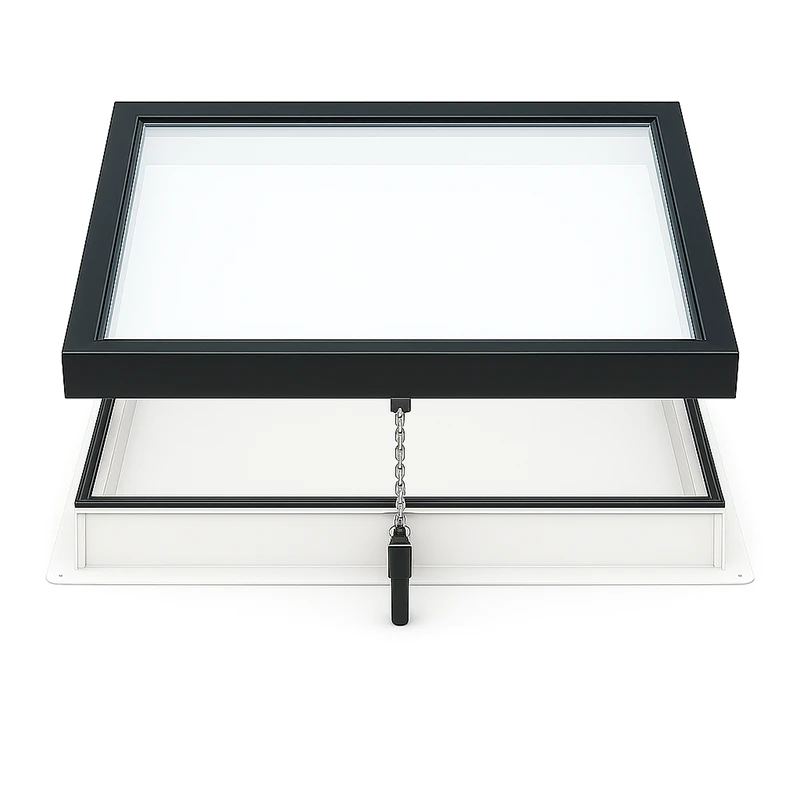

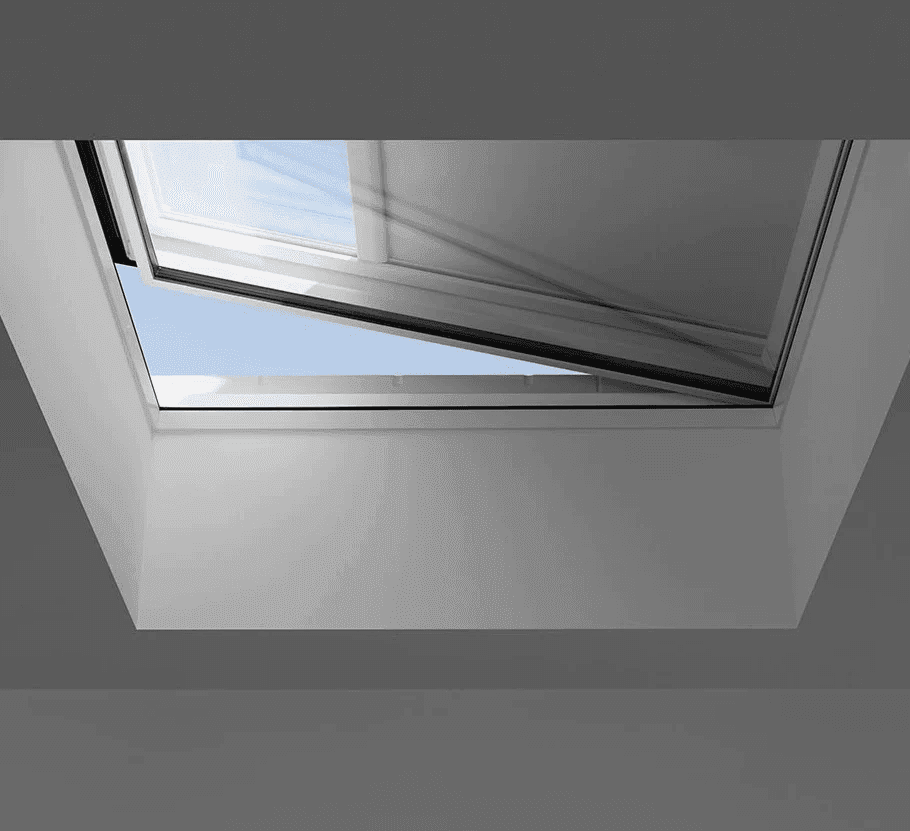

The VELUX CVU solar glass rooflight provides daylight and powered ventilation without mains wiring for the window motor. A solar cell and battery power the opening system, with a wall switch and rain sensor for convenient everyday use.
- Select a base unit and a compatible ISU top cover in the same size.
- Double- and triple-glazed specifications are separate factory variants.
- Integrated rain sensor closes the window when rain is detected.
Roof pitch: ISU 1093: 0°–15° | ISU 2093: 2°–15°
The permitted roof pitch also depends on the selected flashing or top cover and the installation detail.
Official reference: VELUX UK — CVU Solar.
Choose your glazing
| Base specification | Glazing | Use |
|---|---|---|
| Solar double-glazed base | 2-layer | Daylight with insulating safety glass. |
| Solar triple-glazed base | 3-layer | Additional thermal and acoustic comfort. |
Choose the base glazing and the matching ISU cover together. The 70/66 codes used for pitched-roof windows do not describe these flat-roof base units.
Official reference: VELUX UK — glass rooflight specifications.
Build the right flat-roof system
| Top cover | Design | Roof pitch |
|---|---|---|

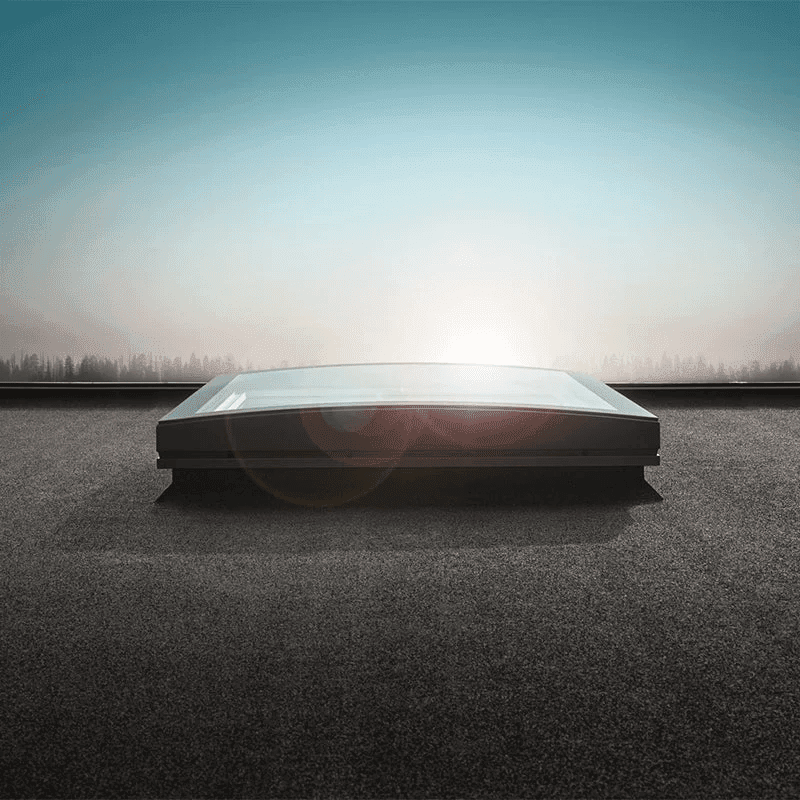

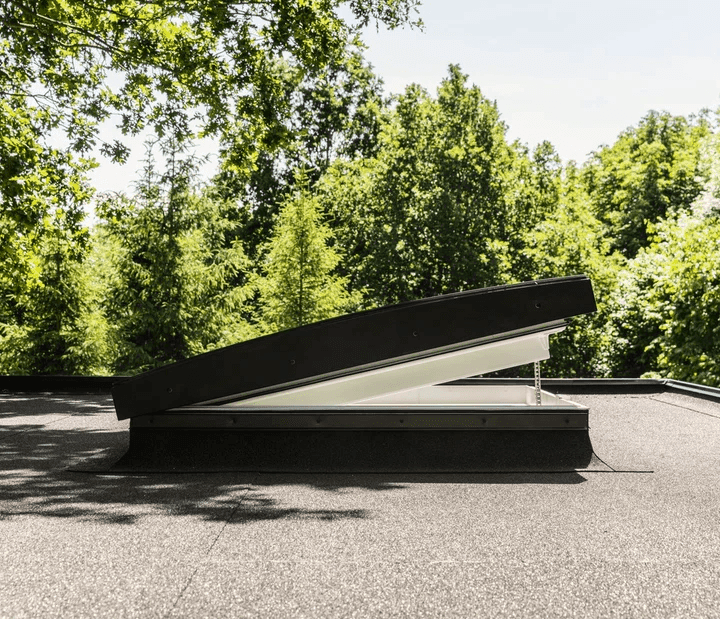

| ISU 1093 | Curved glass | 0°–15° |

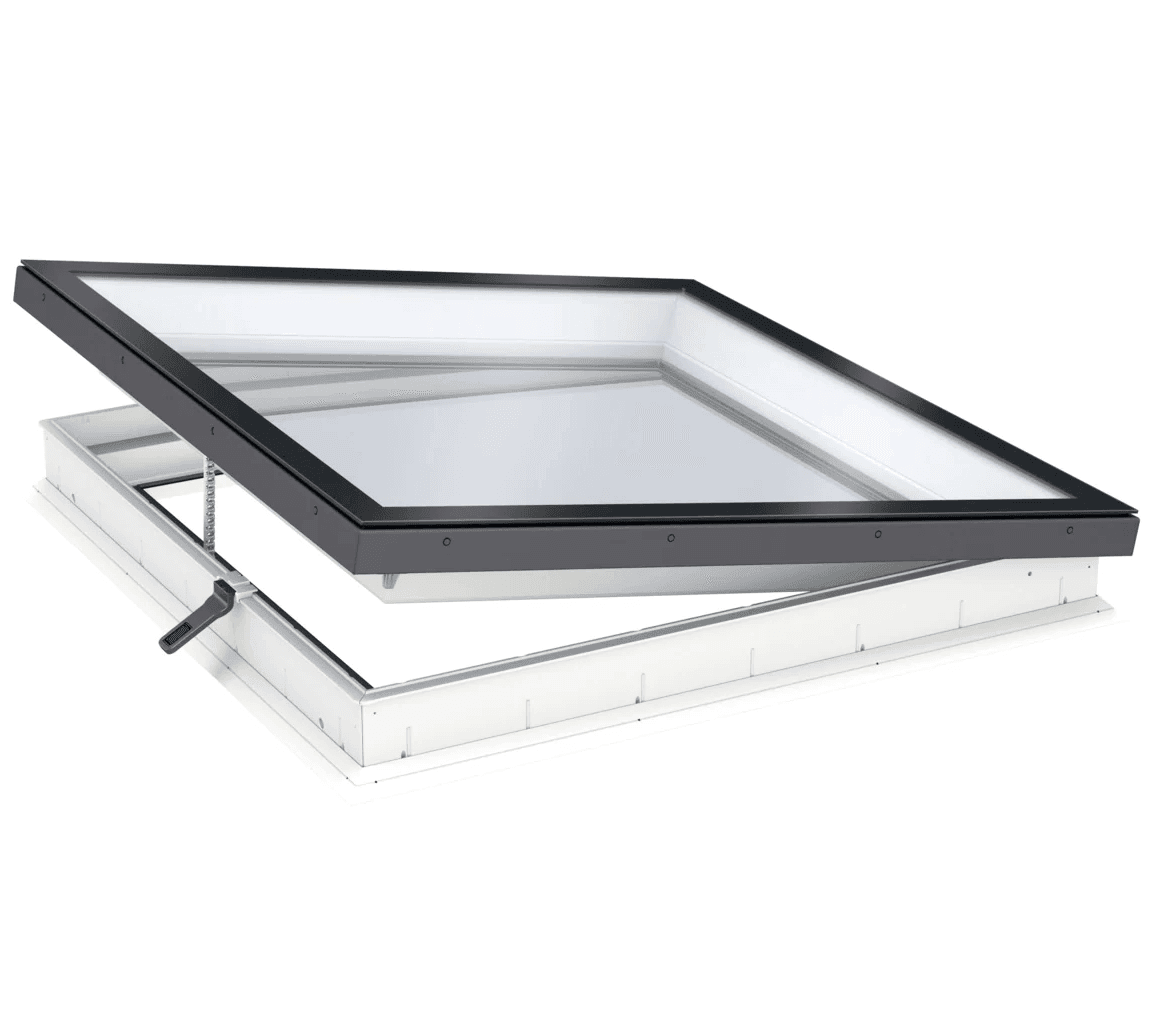

| ISU 2093 | Flat glass | 2°–15° |
- Use the correct kerb/upstand height and membrane connection for the roof construction.
- EDW/EDT pitched-roof flashings are not the installation system for CFU/CVU.
- Choose DSU blackout or MSU anti-heat shading; these two blinds cannot be combined in the same rooflight.
Official reference: VELUX UK — curved glass rooflight.
Official reference: VELUX UK — flat glass rooflight.
Official reference: VELUX UK — shading compatibility.
Find your size
The supplied product list contains CVU electric base entries, but no verified CVU solar ordering codes. Solar base sizes, glazing and delivery are therefore confirmed by quotation. Electric CVU stock references must not be used to order a solar base.
| Specification | What we need |
|---|---|
| Solar base | Full CVU solar product code |
| Size | Required width × height and roof opening |
| Glazing and cover | Double/triple base + ISU 1093 or ISU 2093 |
Nominal sizes are selection references, not structural opening dimensions. Confirm exact frame dimensions, roof opening and orientation from the current VELUX drawing. For a replacement, provide a photo of the full type plate, including the generation and glazing code.
Official reference: VELUX UK — size guide.
Need help choosing? Send us the window type, size code and a photo of the roof covering for a matched specification.
