VELUX · CFU
Your VELUX specification guide
Compare glazing, choose the right installation system and find the size for your project.
Designed around your space

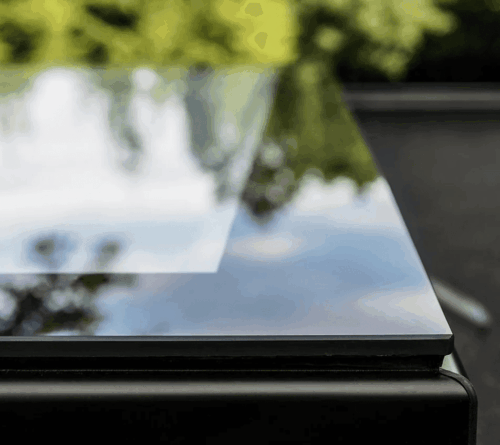

The fixed VELUX CFU brings daylight into flat-roofed spaces with a slim frame and glass-to-edge top. Choose the matching ISU curved or flat glass cover and a double- or triple-glazed base specification for your project.
- Select a base unit and a compatible ISU top cover in the same size.
- Double- and triple-glazed specifications are separate factory variants.
Roof pitch: ISU 1093: 0°–15° | ISU 2093: 2°–15°
The permitted roof pitch also depends on the selected flashing or top cover and the installation detail.
Official reference: VELUX UK — CFU.
Choose your glazing
| Base specification | Glazing | Use |
|---|---|---|
| 0020Q | 2-layer | Daylight with insulating safety glass. |
| 0025Q | 3-layer | Additional thermal and acoustic comfort. |
Choose the base glazing and the matching ISU cover together. The 70/66 codes used for pitched-roof windows do not describe these flat-roof base units.
Official reference: VELUX UK — glass rooflight specifications.
Build the right flat-roof system
| Top cover | Design | Roof pitch |
|---|---|---|

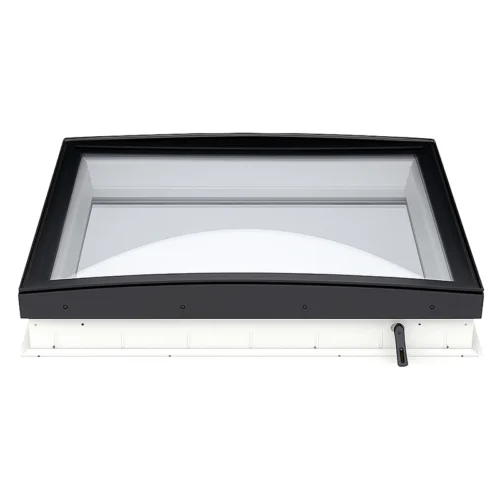

| ISU 1093 | Curved glass | 0°–15° |
| ISU 2093 | Flat glass | 2°–15° |
- Use the correct kerb/upstand height and membrane connection for the roof construction.
- EDW/EDT pitched-roof flashings are not the installation system for CFU/CVU.
- Choose DSU blackout or MSU anti-heat shading; these two blinds cannot be combined in the same rooflight.
Official reference: VELUX UK — curved glass rooflight.
Official reference: VELUX UK — flat glass rooflight.
Official reference: VELUX UK — shading compatibility.
Find your size
These size references come from our VELUX product range. Ask us to confirm the complete specification, current availability and lead time before ordering.
| Model / size code | Nominal size | Store reference |
|---|---|---|
| CFU 060060 | 60 × 60 cm | 29017726 |
| CFU 060090 | 60 × 90 cm | 29017722 |
| CFU 080080 | 80 × 80 cm | 29017481 |
| CFU 090090 | 90 × 90 cm | 29016132 |
| CFU 100100 | 100 × 100 cm | 29018106 |
| CFU 120090 | 120 × 90 cm | 29018041 |
| CFU 120120 | 120 × 120 cm | 29017723 29018202 |
| CFU 150150 | 150 × 150 cm | 29018190 29018191 |
| CFU 200060 | 200 × 60 cm | 29017736 29017752 |
| CFU 200100 | 200 × 100 cm | 29018640 |
Nominal sizes are selection references, not structural opening dimensions. Confirm exact frame dimensions, roof opening and orientation from the current VELUX drawing. For a replacement, provide a photo of the full type plate, including the generation and glazing code.
Official reference: VELUX UK — size guide.
Need help choosing? Send us the window type, size code and a photo of the roof covering for a matched specification.
