VELUX · CFP
Your VELUX specification guide
Compare glazing, choose the right installation system and find the size for your project.
Designed around your space

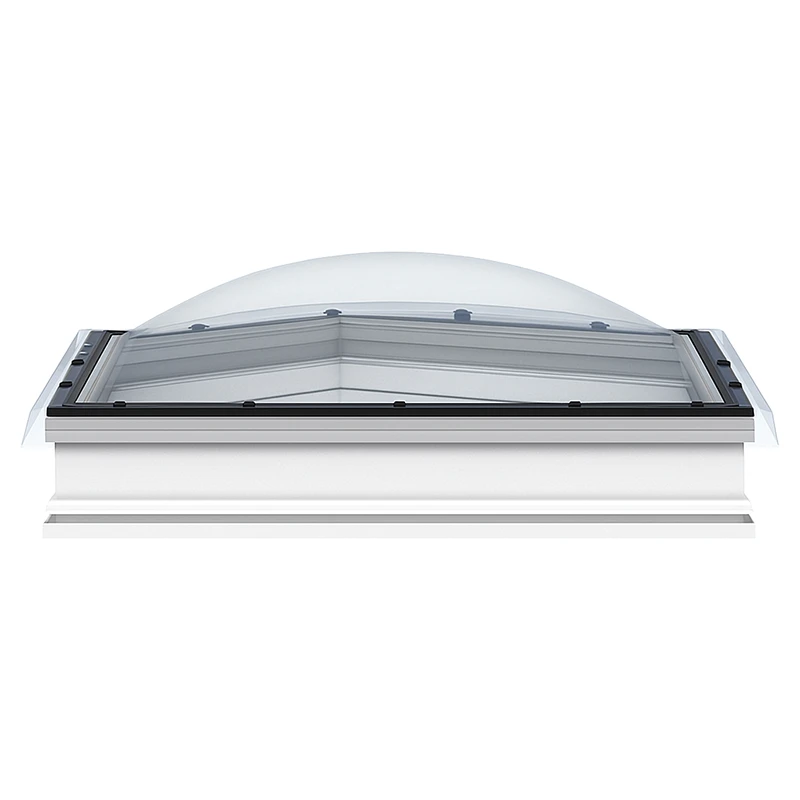

The fixed VELUX CFP combines an insulated base and double-glazed pane with a matching protective dome. It is a practical daylight solution for flat-roofed rooms that do not need ventilation through the window.
- Insulated base with a laminated inner glass pane and separate outer cover.
- Match the cover and accessories to the window size and generation.
Roof pitch: 0°–15°
The permitted roof pitch also depends on the selected flashing or top cover and the installation detail.
Official reference: VELUX UK — CFP.
Choose your glazing
This dome-with-glazing system has an insulating double-glazed pane in the base, including a laminated inner pane for safety. The protective dome is a separate component.
| Part | What to specify |
|---|---|
| Glazed base | Exact CFP / CVP / CXP base code and size. |
| Outer dome | Matching generation, size and clear or opaque finish. |
Official reference: VELUX UK — dome with glazing.
Build the right flat-roof system
- Match the CFP/CVP/CXP base with the specified outer dome and the exact size code.
- The roof membrane must be correctly dressed to the insulated kerb/upstand.
- Use the relevant extension kerb only where the installation guide permits it.
- Do not assume that ISU covers for CFU/CVU fit the older CFP/CVP/CXP platform.
Official reference: VELUX UK — dome with glazing.
Find your size
These size references come from our VELUX product range. Ask us to confirm the complete specification, current availability and lead time before ordering.
| Model / size code | Nominal size | Store reference |
|---|---|---|
| CFP 060060 | 60 × 60 cm | 29015278 |
| CFP 060090 | 60 × 90 cm | 29015275 |
| CFP 080080 | 80 × 80 cm | 29015900 |
| CFP 090090 | 90 × 90 cm | 29015901 |
| CFP 090120 | 90 × 120 cm | 29014552 |
| CFP 100150 | 100 × 150 cm | 29015902 |
| CFP 120120 | 120 × 120 cm | 29015272 |
| CFP 150150 | 150 × 150 cm | 29015903 |
Nominal sizes are selection references, not structural opening dimensions. Confirm exact frame dimensions, roof opening and orientation from the current VELUX drawing. For a replacement, provide a photo of the full type plate, including the generation and glazing code.
Official reference: VELUX UK — size guide.
Need help choosing? Send us the window type, size code and a photo of the roof covering for a matched specification.
