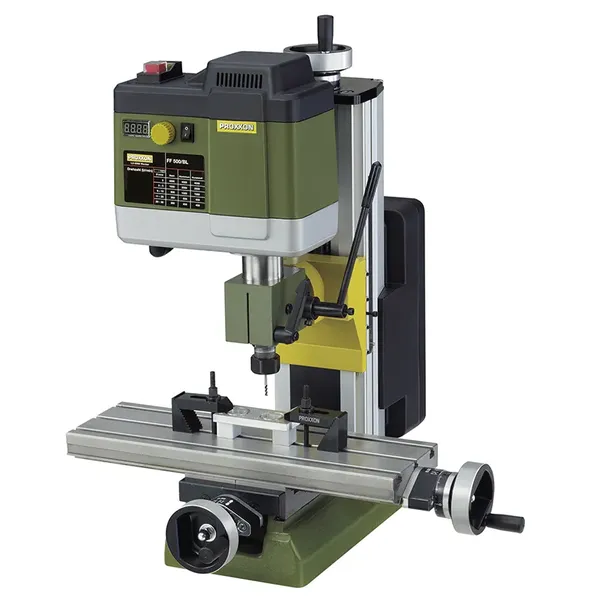

Φρέζα FF 500/BL

Φρέζα FF 500/BL

With variable speed pre-selection from 200 – 4,000rpm and high precision (accuracy 0.05mm). With digital speed indication.

Characteristics:

• The sophisticated control via rotor position and speed sensors guarantees high torque for use of large milling cutters in the lower speed range.
• Solid column with dovetail guides. Milling head can be rotated to the left and right by 90° (with graduation).
• The clampable spindle sleeve is prepared for mounting of the fine feed adapter.
• Tool holder using multiple range collets type ER 20: One each of 6 – 8 – 10 and 12mm are included.
• Height adjustment of milling head via hand wheel.
• Solid plane-milled steel compound table with 3 continuous MICROMOT standard T-slots (12 x 6 x 5mm).
• All 3 hand wheels with graduated scale ring (1 rev. = 2mm).
